ORIGINAL BMW brake discs + ATE ceramic pads + Wako F10 F11 528i 530i 525d 530d front

ORIGINAL BMW brake discs + ATE ceramic pads + Wako F10 F11 528i 530i 525d 530d front

Item No.: PP682P682H
Manufacturer: BMW
part number: 34 10 6 898 723, 13.0470-7275.2, GBK 436

Items included:
  • 2x Brake Disc Piece - BMW 34 10 6 898 723
  • 1x Brake Pad Set, disc brake Set - ATE 13.0470-7275.2
  • 1x Warning Contact, brake pad wear Piece - CARIPAR GBK 436



questions about this product?
Share
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: Vented
  • Brake Disc Type: two-piece brake disc
  • Fitting Position: Front Axle
  • Outer Diameter [mm]: 348
  • Number of Holes: 5
  • Brake Disc Thickness [mm]: 30
  • Ordering only possible via the vehicle identification number:
reference numbers - for comparison
  • ATE - 24.0130-0218.2 / 24013002182
  • BMW - 34 10 6 898 723 / 34106898723
  • BMW - 34 10 6 898 723 / 34106898723
  • BMW - 34 11 6 775 277 / 34116775277
  • BMW - 3411 6 884 301 / 34116884301
  • BOSCH - 0 986 479 E16 / 0986479E16
  • BREMBO - 09.C409.13 / 09C40913
  • FERODO - DDF2047C-1 / DDF2047C1
  • HELLA PAGID - 8DD 355 120-651 / 8DD355120651
  • JURID - 562679JC-1 / 562679JC1
  • RAICAM - RD01528
  • TEXTAR - 92265725
  • TRW - DF6615S
  • ZIMMERMANN - 150.3483.32 / 150348332
  • ZIMMERMANN - 150.3483.52 / 150348352
  • ZIMMERMANN - 150.3483.54 / 150348354
  • ZIMMERMANN - 150.3483.55 / 150348355
  • ZIMMERMANN - 150348320
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 24688
  • Fitting Position: Front Axle
  • Version: ATE Ceramic
  • Wear Warning Contact: prepared for wear warning indicator
  • Wear Warning Contact: excl. wear warning contact
  • Article Number of recommended accessories: 24.8190-0298.2
  • Thickness [mm]: 19,2
  • Thickness 2 [mm]: 20,2
  • Width [mm]: 154,1
  • Height [mm]: 68,4
  • Brake System: ATE
  • Test Mark: E1 90R-02A0258/0270
  • Observe dimensions:
  • MAPP code available:
  • Permissible up to vehicle capacity [kW]: 225
reference numbers - for comparison
  • ATE - 13.0460-7275.2 / 13046072752
  • ATE - 13.0470-7275.2 / 13047072752
  • ATE - 23313
  • ATE - 24688
  • BMW - 34 11 2 449 266 / 34112449266
  • BMW - 34 11 6 775 314 / 34116775314
  • BMW - 34 11 6 850 885 / 34116850885
  • BMW - 34 11 8 847 063 / 34118847063
  • BOSCH - 0 986 494 549 / 0986494549
  • BREMBO - P 06 074 / P06074
  • BREMBO - P 06 074 / P06074
  • BREMBO - P06074N
  • BREMBO - P06074N
  • DELPHI - LP2245
  • FERODO - FDB4382
  • FTE - BL2084A2
  • HELLA - 8DB 355 015-261 / 8DB355015261
  • HELLA PAGID - 8DB 355 015-261 / 8DB355015261
  • JURID - 573305J
  • JURID - 573305JC
  • TEXTAR - 2468881
  • TRW - GDB1854
  • VALEO - 302273
  • VALEO - 601382
  • febi bilstein - 16865
item specifications
  • Component: Braking System
  • Application: Lining Wear
  • Quantity Unit: Piece
  • Fitting Position: Front Axle
reference numbers - for comparison
  • ATE - 24.8190-0298.2 / 24819002982
  • ATE - 620298
  • BMW - 34 35 6 791 958 / 34356791958
  • BOSCH - 1 987 473 500 / 1987473500
  • BREMBO - A 00 422 / A00422
  • BREMBO - A 00 422 / A00422
  • CARIPAR - GBK 436 / GBK436
  • DELPHI - LZ0211
  • FERODO - FWI334
  • FTE - BZ1173W-SET / BZ1173WSET
  • HELLA - 8DK 355 251-631 / 8DK355251631
  • HELLA PAGID - 8DK 355 251-631 / 8DK355251631
  • JURID - 581475
  • PAGID - P8574
  • PAGID - P8574
  • TEXTAR - 98042400
  • febi bilstein - 36426
manufacturer model type power capacity constr. date kba limitations
ORIGINAL BMW assembly paste Brake paste Brake pad paste 83192158851 (1 piece)
BMW
3.95 EUR*
add to cart
ORIGINAL BMW assembly paste Brake paste Brake pad paste 83192158851 (1 piece)
ORIGINAL BMW assembly paste Brake paste Brake pad paste 83192158851 (1 piece)
BMW
3.95 EUR*

718.18 EUR per 1 l

add to cart

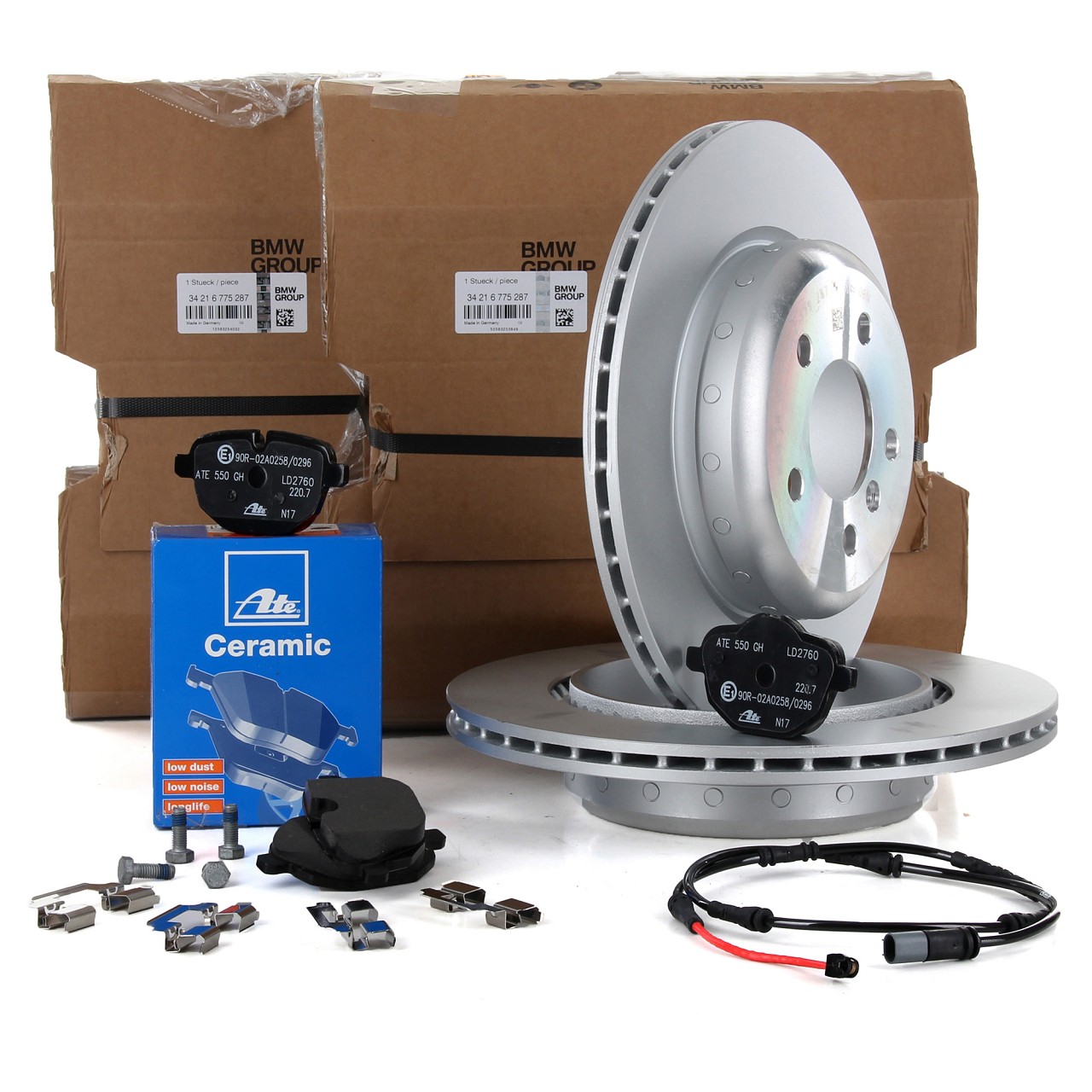

ORIGINAL BMW brake discs + ATE ceramic pads + Wako 5 Series F11 520-530i 518-525d rear
